• Cigarette lighter
• Inside hood release

• 95 amp alternator
• Front stabilizer bar
• Full size spare tire
• Gas shock absorbers
• Pwr rack & pinion steering
• Rear wheel drive

2.5L EFI 4-CYL ENGINE

• (STD)

• Rear Wheel Drive
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Power Steering
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Power Outlet
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch

• Mileage
• EPA Fuel Economy Est - City (MPG): 22
• EPA Fuel Economy Est - Hwy (MPG): 27
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 540
• Maximum Alternator Capacity (amps): 95
• Maximum Alternator Watts: 1425
• Cooling System
• Total Cooling System Capacity (qts): 6.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2200
• Gross Axle Wt Rating - Rear (lbs): 2550
• Curb Weight - Front (lbs): 1797
• Curb Weight - Rear (lbs): 1233
• Gross Vehicle Weight Rating Cap (lbs): 4320
• Gross Combined Wt Rating (lbs): N/A
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 200
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 2200
• Spring Capacity - Rear (lbs): 2550
• Axle Type - Front: Short/Long Arm
• Axle Type - Rear: Ford Semi-Floating
• Axle Capacity - Front (lbs): 2400
• Axle Capacity - Rear (lbs): 2750
• Axle Ratio (:1) - Rear: 3.45
• Shock Absorber Diameter - Front (mm): 1.19
• Shock Absorber Diameter - Rear (mm): 1.19
• Stabilizer Bar Diameter - Front (in): 1.06
• Brakes
• Brake Type: Power
• Brake ABS System: Rear Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 10.28 x 1.33
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 9.00 x 1.75
• Tires
• Front Tire Order Code: T81
• Rear Tire Order Code: T81
• Front Tire Size: P205/75R14SL
• Rear Tire Size: P205/75R14SL
• Spare Tire Size: P205/75R14SL
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 22.0
• Turning Diameter - Curb to Curb (ft): 37.7
• Turning Diameter - Wall to Wall (ft): 39.7
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 16.5
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 111.6
• Length, Overall w/o rear bumper (in): 187.5
• Width, Max w/o mirrors (in): 69.4
• Height, Overall (in): 64.9
• Overhang, Front (in): 33.3
• Overhang, Rear w/o bumper (in): 42.6
• Front Bumper to Back of Cab (in): 107.3
• Cab to Axle (in): 37.6
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Frame Width, Rear (in): 32.8
• Ground Clearance, Rear (in): 6.7
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 71.8
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 40.4
• Cargo Box (Area) Height (in): 16.5
• Tailgate Width (in): 52.0
• Cargo Volume (ft³): 37.4
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 39.2
• Front Leg Room (in): 42.4
• Front Shoulder Room (in): 53.8
• Front Hip Room (in): 52.7
• Summary

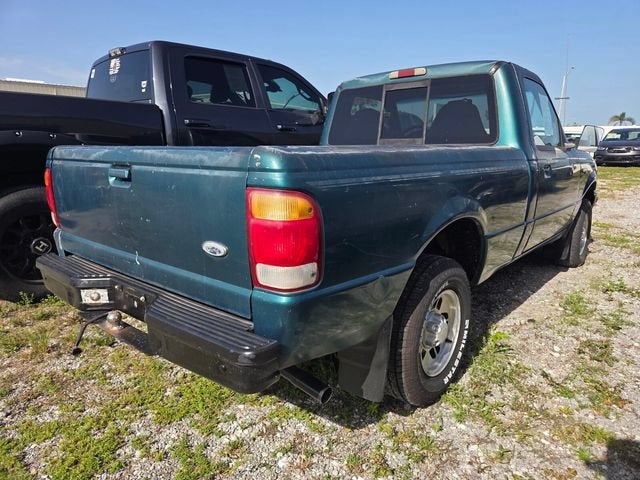

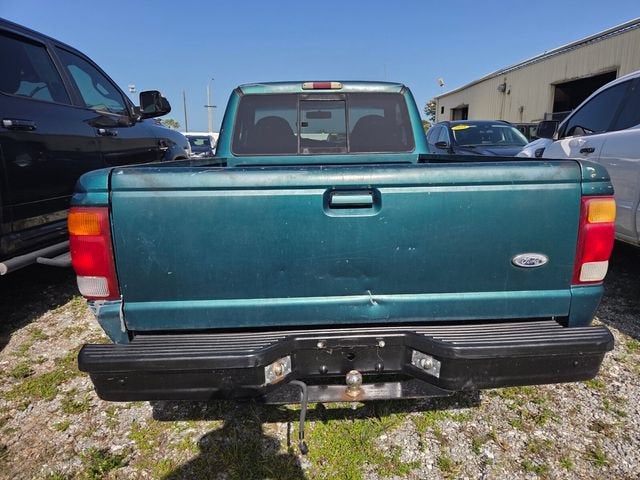

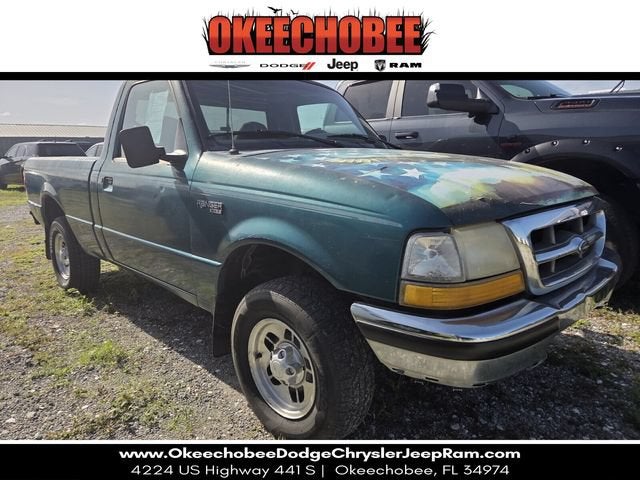

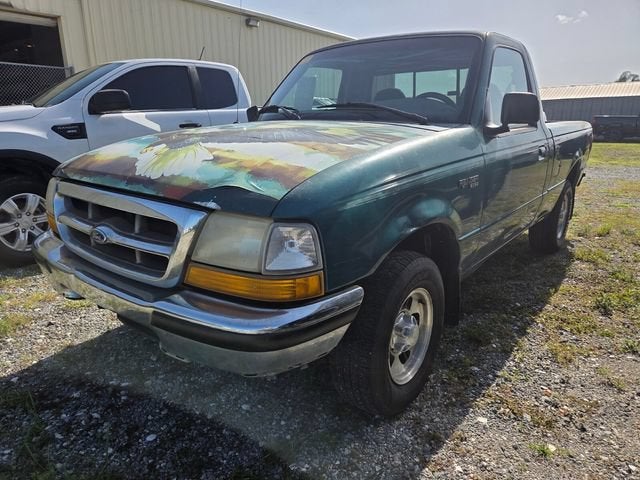

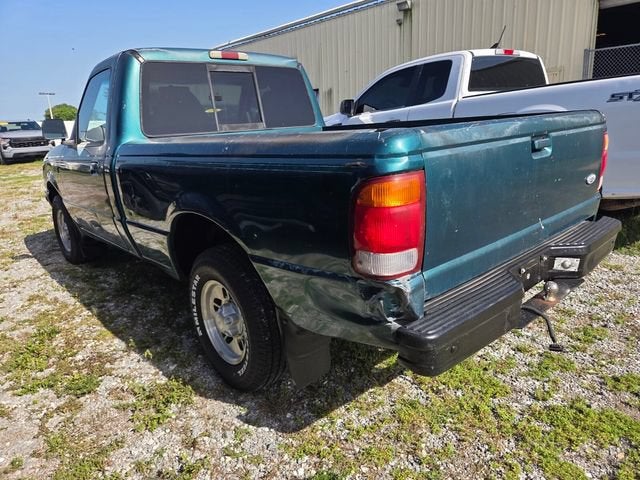

• Vehicle Name: Ford Ranger
• Body Style: Reg Cab 6'
• Body Code: 111.6" WB
